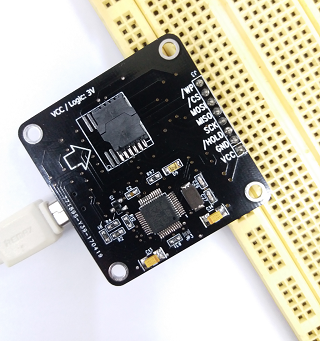

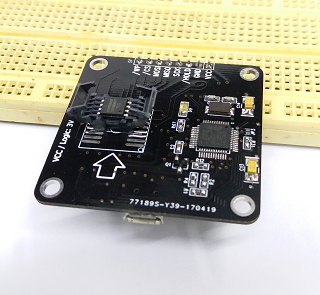

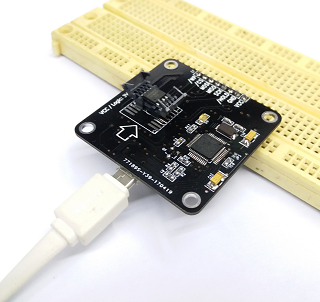

USB serial flash programmer with Socket AdapterIt has been designed to use Serial Flash memory chips (SO8 package) without soldering. This gives you possibility to erase, program and verify Serial Flash memory chip without soldering them to a PCB. Built-in a small size USB programmer and socket 2 in 1 , It use STM32 32-bit ARM cortex MCU chip. The circuit designed for EKZ-E08 programming tools. It support Window OS , MAC OS and Linux OS . (** MAC OS and Linux OS QT source code only ** ). |
Specifications
| Operating Temperature (CPU): | -40°C ~ +85°C |
| Power: | USB Powered |
| Connection to PC: | USB Virtual COM port |
| CDC Driver: | Windows 8 / 7 / Vista / Server 2003 / XP / 2000Mac OS-X / OS-9 (OS built-in)Linux (OS built-in) |
Features
- USB 2.0 Mirco Type B Plug.
- Program Serial Flash SPI chip (SO8 package) without soldering.
- Provide optional connection golden finger for connect other device without soldering.
- Program , Erase and verify SPI Flash chips via USB port.
- Powered by USB, no need external power adapter.
- Compatible arduino develop environment.
- Using CDC Device dirver.
Open source Programmer Software.
Qt based. Support Windows (tested on XP, 7, 8), Linux (tested on Ubuntu 12.04), MacOSX (tested on 10.8).

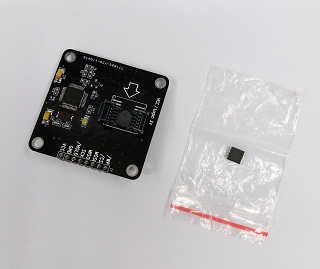

Package Content:
- USB serial flash programmer with Socket Adapter broad
- Serial flash SO8 package Socket
- STM32 32-bit ARM cortex MCU for usb bridge (built-in 5V to 3.3V Low dropout power regulator.)
- 16M Serial flash (Winbond W25Q16 SO8 package) x1
Shipping and Payment:
- Accept PayPal Only
- Worldwide shipping via Airmail
USB serial flash Socket

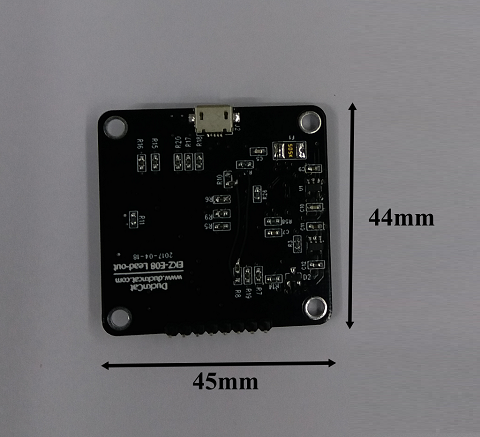

Size

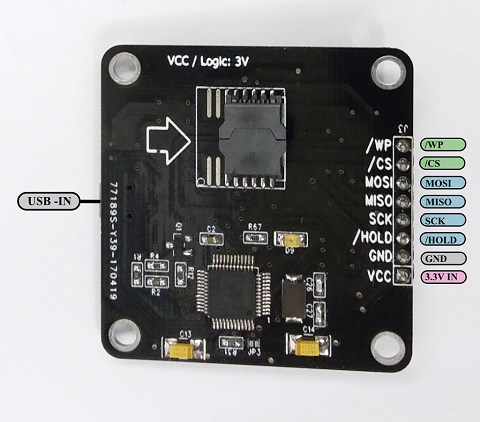

Compatible Pin Assignment
Supported Chips
MXIC |
||||
| MX25L512 | MX25L1005 | MX25L2005 | MX25L4005 | MX25L8005 |
| MX25L1605 | MX25L3205 | MX25L6405 |
WINBOND |
||||
| W25X10 | W25X20 | W25X40 | W25X80 | W25X16 |
| W25Q16 | W25X32 | W25X64 |
ATMEL |
||||
| AT25DF021 | AT25DF041A | AT25DF081 | AT25DF161 | AT(25/26)DF321 |
| AT26DF321 | AT25DF321A | AT25DF641 | AT26DF081A | AT26DF161 |
| AT26DF161A |
SPANSION |
||||
| S25FL004A/040A | S25FL008A | S25FL016A | S25FL032A | S25FL064A |
EON |
||||
| EN25D80 | EN25F80 | EN25T80 |
AMIC |
||||
| A25L512 | A25L010 | A25L020 | A25L040 | A25L080 |
| A25L016 | A25L032 |
SST |
||||
| SST25VF512/A | SST25(LF/VF)010/A | SST25(LF/VF)020/A | SST25(PF/VF)020B | SST25(LF/VF)040/A |
| SST25(PF/VF)040B | SST25(PF/VF)080B | SST25VF016B | SST25VF032B |
Software

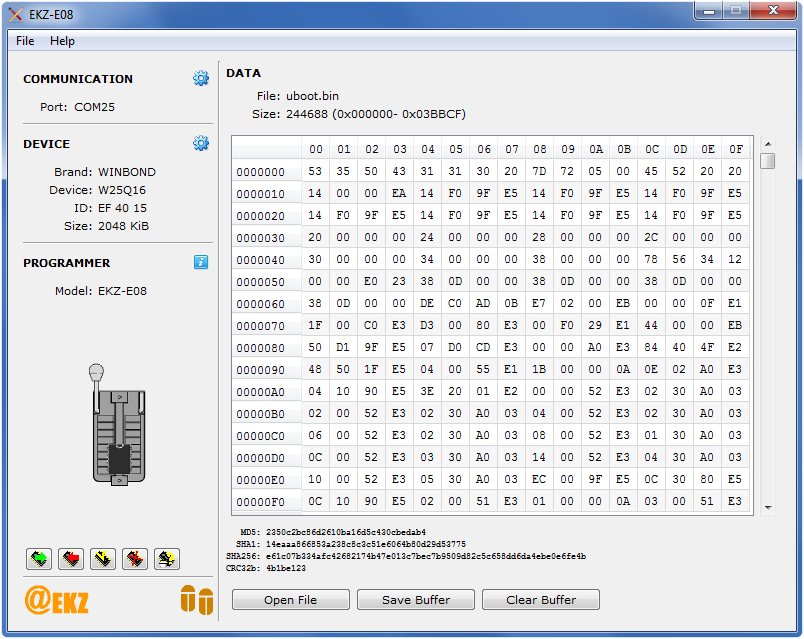

On Windows (Win7 64bits)

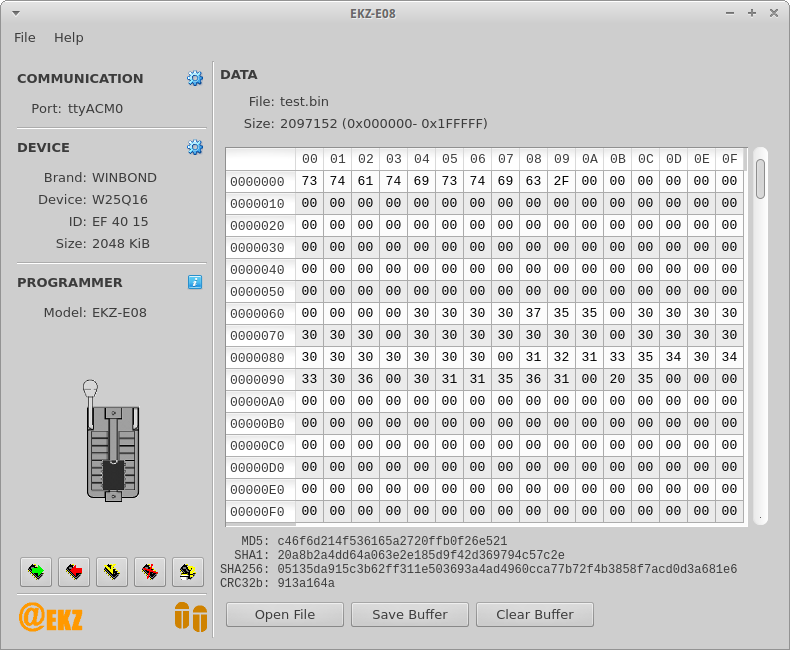

On Linux (XUbuntu 13.04 Desktop 32bits) *QT source code built

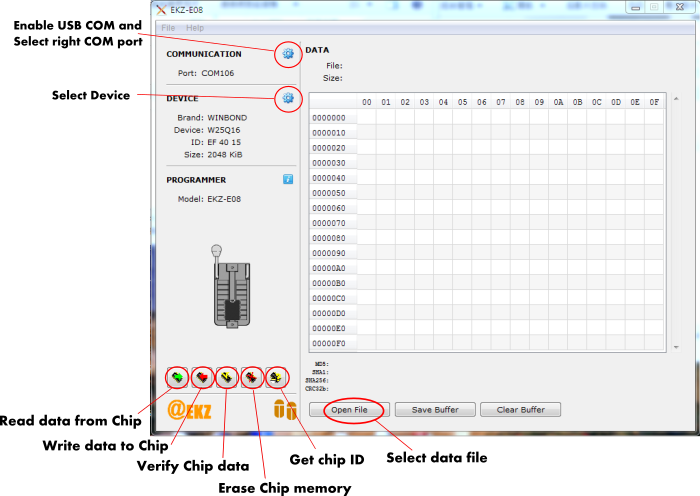

EKZ programmer software (Windows) usage

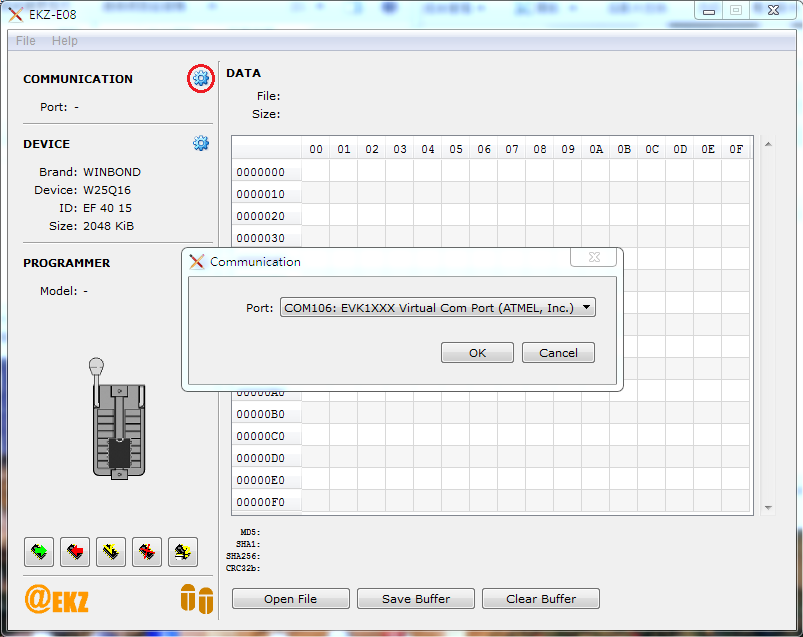

1) Select right COM port after connect progammer broad to PC.
2) Select file for program flash memory chip.

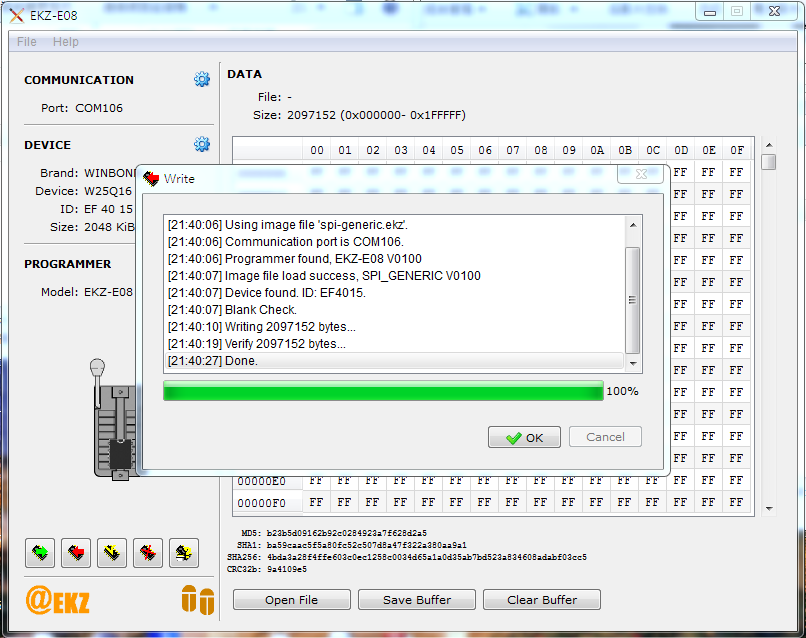

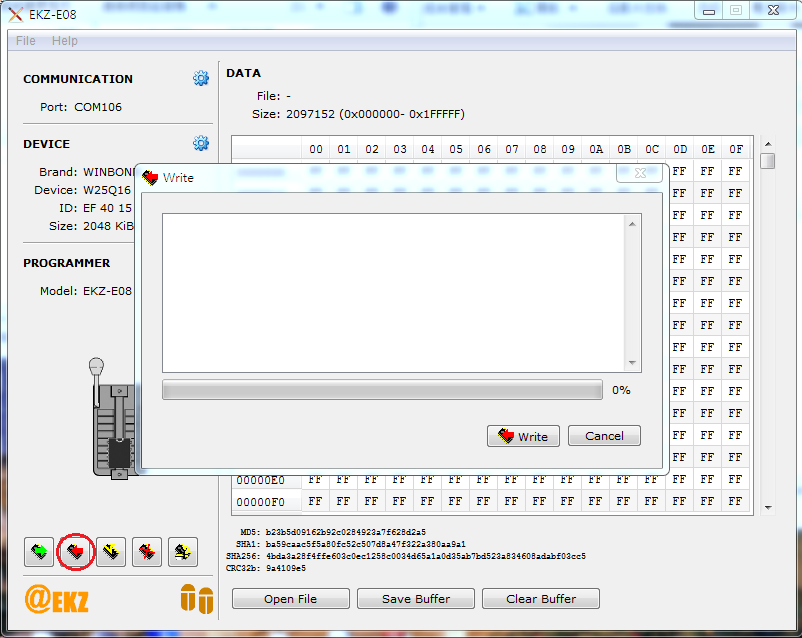

3) Program flash memory chip memory data.
others function

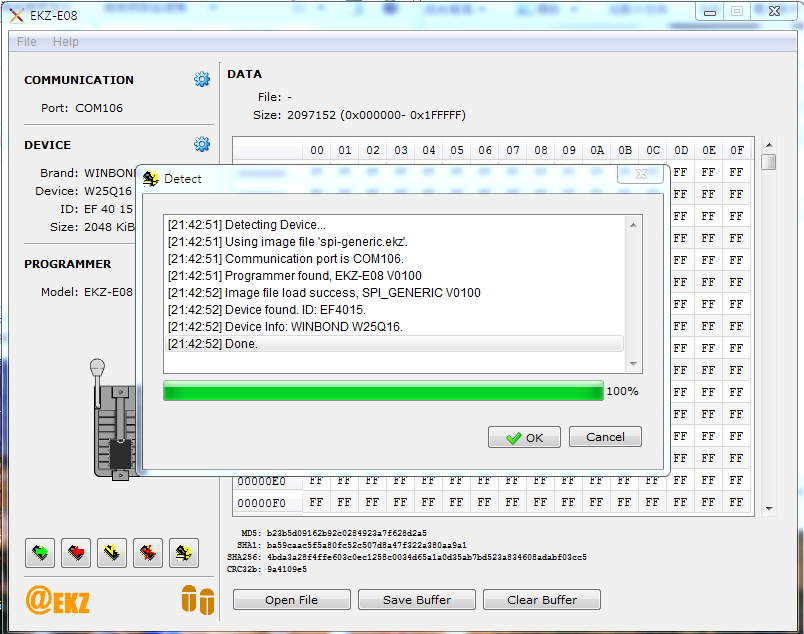

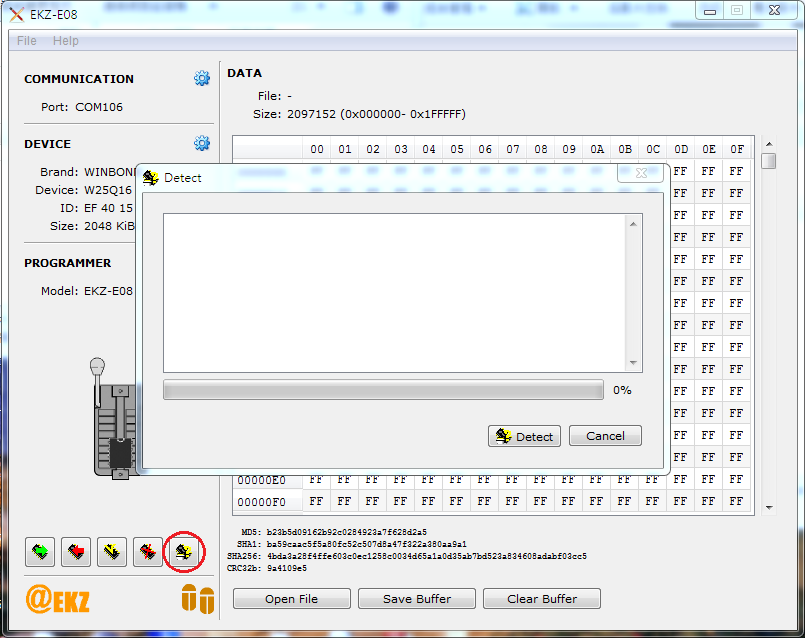

Get flash memory chip ID code

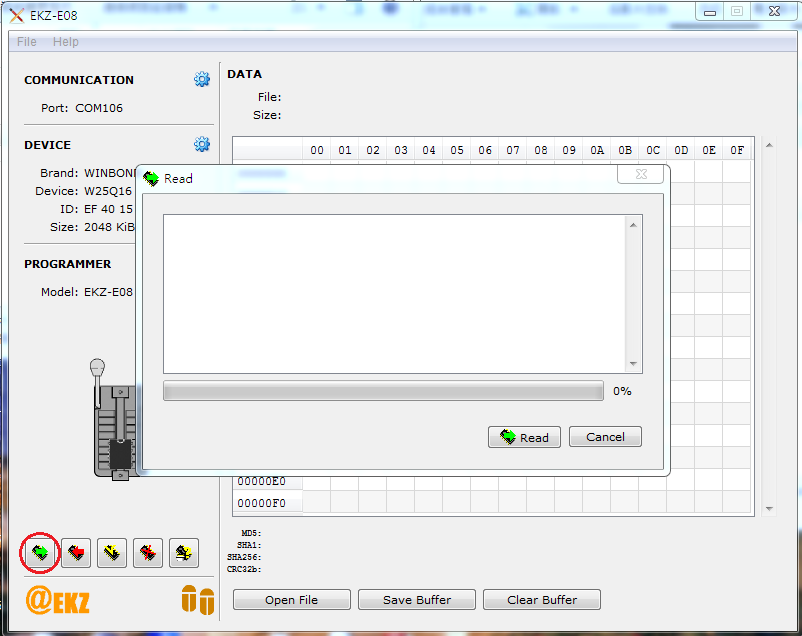

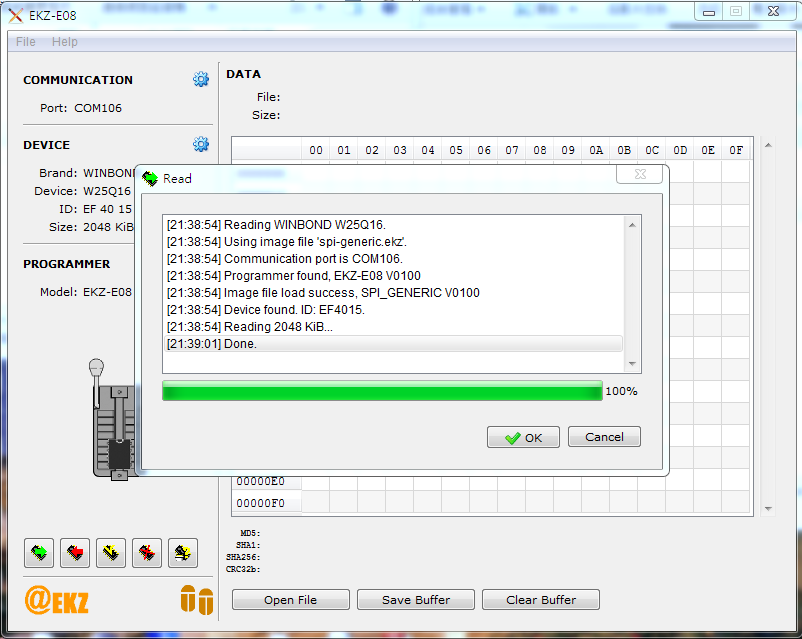

Read back from flash memory chip

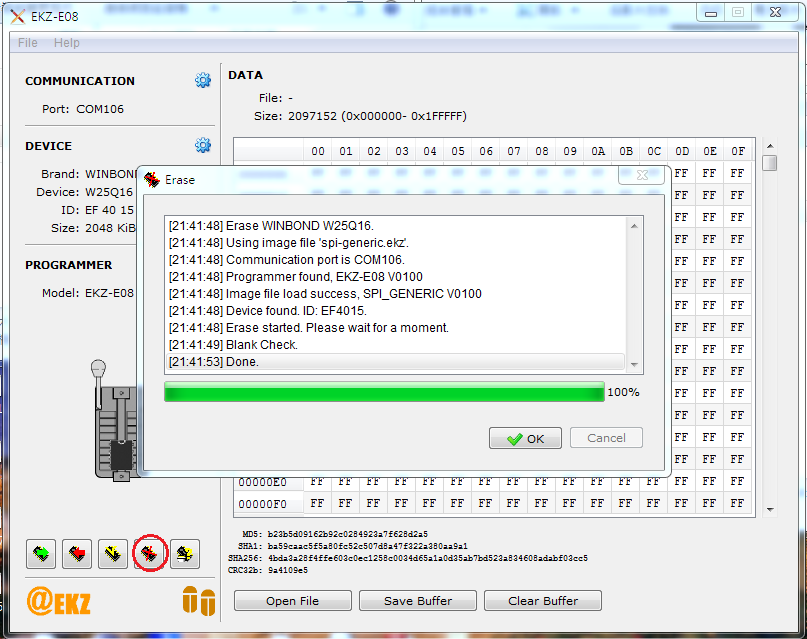

Erase flash memory chip memory data.

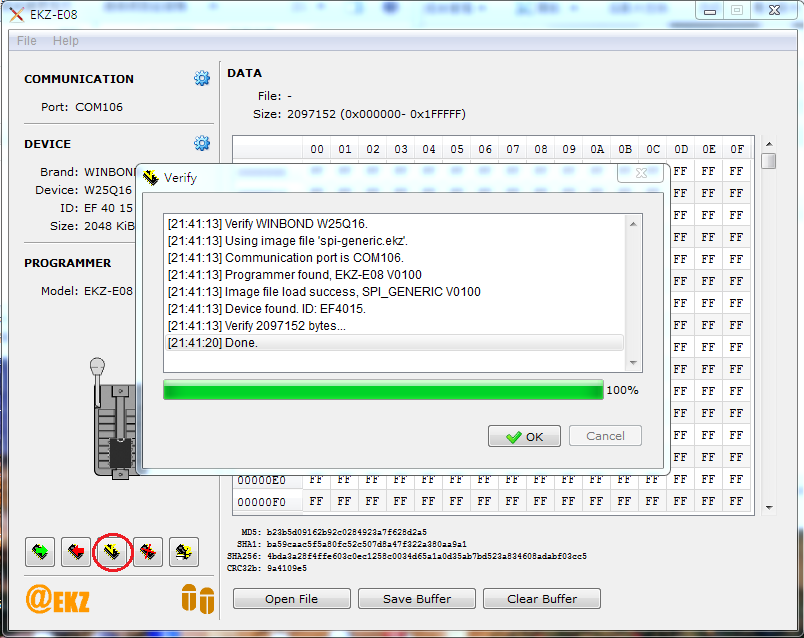

Verify flash memory chip memory data.
Resources
- CDC Driver for Windows (WinXP/Win7/Win8) (Download)
- Windows 32bits Executable Binary (r3) (Tested on Win7 32bits, Win7 64bits, Win8 64bits) (Download)
- Windows 32bits Executable Binary (r4) (Tested on Win7 32bits, Win7 64bits, Win8 64bits) (Download)
- Linux 32bits Executable Binary (r3) (Tested on Ubuntu 12.04 32bits, Ubuntu 13.10 32bits) (Download)
- EKZ programmer source code (Download)
